Défi DIN-Gauge Set

Défi DIN-Gauge Set

• 3 gauges integrated in a 1-DIN sized case
• Displays 2 temperatures and 1 pressure
• Red or white characters and pointers
• Permanent LED illumination
• Sequential opening and closing mode
• Front cover with flat face glass
• For RHD (right hand drive) vehicles only
• Sensors, wires, connector and screws included
• Défi quality and precision

Défi DIN-Gauge Set Specifications

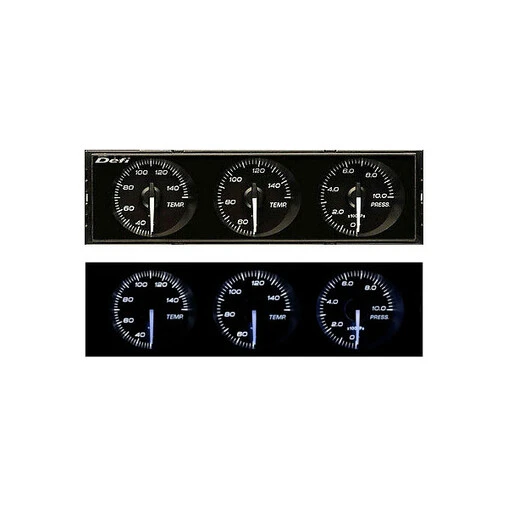

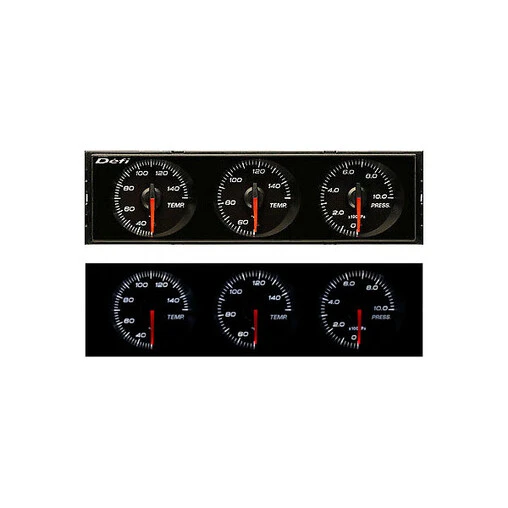

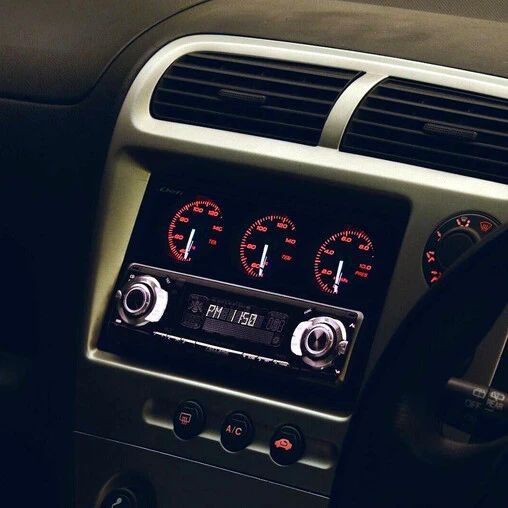

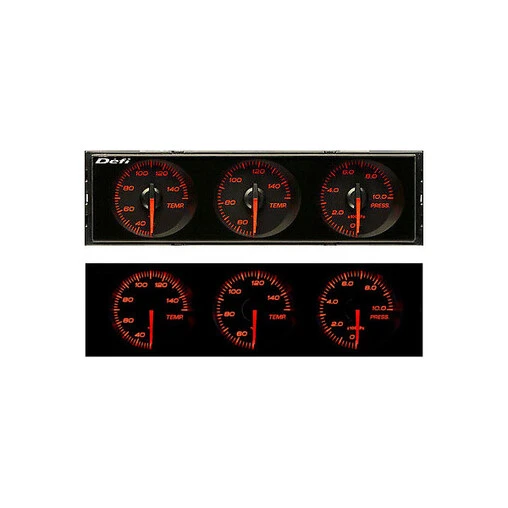

The Défi DIN-Gauge set includes three gauges providing two temperatures and one pressure in a 1-DIN sized housing. It allows a perfect integration in the car cabin, by using for example a vacant space for a car radio. These gauges are graduated from 30 to 150°C for temperature 1, from 50 to 150°C for temperature 2, and from 0 to 1000 kPa for pressure. They have a black dial color and are available with white or red characters and white or red pointers.

They feature a sequential on/off routine and a bright LED illumination for excellent readability in all conditions. It is possible on these gauges to set a “Peak Hold” function (requires a commercially available switch). They are protected by a flat face glass and are angled towards the right for maximum visibility from the seat of an RHD (right hand drive) vehicle.

The quality of the Défi gauges exceeds that of any other product on the market. They are graduated over 270° for a more accurate reading. Their stepping motors and sensors are extremely accurate and self-calibrating. This set comes with all the necessary mounting hardware (sensors, wires, connector, screws).

Please note : this product is not compatible with the Défi-Link and Défi-Link Advance systems.

See below the Japanese presentation of the DIN-Gauge set :
